蒸汽旋转接头-梅尔DX系列H-332L H-332R,DP40R51 DP40L51

时间:2020-06-19   来源:液压旋转接头 作者:德威迩  点击:

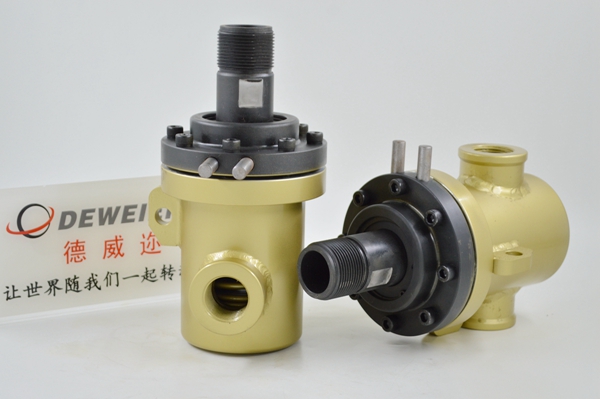

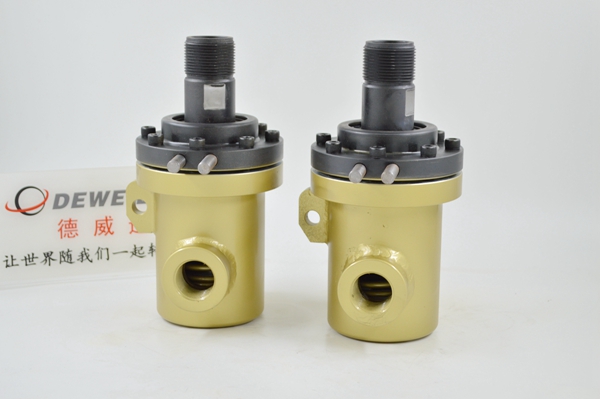

MAIER旋转接头DX系列适用于冷却水(DX/DXS)和热水(DXS)易于维修.在纺织、塑料和纸张行业得到全面认可 。黄铜外壳,直径DN100和DN100以上及型号DXSA的外壳是钢制的。转体和工作面由铬钢制成,而DXS和DXSA的工作表面是金属陶瓷。紧凑型机械密封设计DXS和DXSA的机械密封是无压力设计在高温时易于连接利用标准的左、右旋公螺纹连接到转动中的压力系统在密封和定中心锥管尾部是螺纹。
技术参数(Application data) DX DXS DXS DXS/DXSA DXSB
设计序列
接头直径 DN mm
1,2,R2
10
~80
1,2
10
~80
R2
10
~80
1,2,A2
10
~80
B2
50
~80
介质 冷却水 冷却水、热水 冷却水、热水 冷却水、热水、蒸汽 冷却水、热水
温度 oC
压力 PN  bar
-15~80
0,2
~8
-15~150
0,2
~8
-15~150
0,2
~8
-15~160
0,2
~10
-15~160
0,2
~10
转速 min-1 50000
DN
55000
DN
50000
DN
55000
DN
55000
DN


DX S A 2 150 F -100
型号 热水和蒸汽 旋转内管设计 供给连接 接头直径 旋转体连接 特殊设计

  S: 金属陶瓷用于热水和蒸汽R: 滑动轴和管密封A: 完全独立的主流和回流B: 回转体内的静止内管
供给连接
1: 单通道2: 双通道3: *双通道带真空阀   *依据设计要求接头直径(mm) 10, 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150旋转体连接R: 右旋L: 左旋K: K 法兰F: 固定法兰

DX Type DX110R DX115R DX120R DX125R DX132R DX140R DX150R DX165R DX180R
Order-No 1106000 1106050 1106100 1106150 1106200 1106250 1106300 1106350 1106400
Type DX110L DX115L DX120L DX125L DX132L DX140L DX150L DX165L DX180L
Order-No 1106001 1106051 1106101 1106151 1106201 1106251 1106301 1106351 1106401
Type DX110K DX115K DX120K DX125K DX132K DX140K DX150K DX165K DX180K
Order-No 1106002 1106052 1106102 1106152 1106202 1106252 1106302 1106352 1106402
Type DX210R DX215R DX220R DX225R DX232R DX240R DX250R DX265R DX280R
Order-No 1106003 1106053 1106103 1106153 1106203 1106253 1106303 1106353 1106403
Type DX210L DX215L DX220L DX225L DX232L DX240L DX250L DX265L DX280L
Order-No 1106004 1106054 1106104 1106154 1106204 1106254 1106304 1106354 1106404
Type DX210K DX215K DX220K DX225K DX232K DX240K DX250K DX265K DX280K
Order-No 1106005 1106055 1106105 1106155 1106205 1106255 1106305 1106355 1106405
Type DXR215R DXR220R DXR225R DXR232R DXR240R DXR250R DXR265R DXR280R -
Order-No 1106056 1106106 1106156 1106206 1106256 1106306 1106356 1106406 -
Type DXR215L DXR220L DXR225L DXR232L DXR240L DXR250L DXR265L DXR280L -
Order-No 1106057 1106107 1106157 1106207 1106257 1106307 1106357 1106407 -
Type DXR215K DXR220K DXR225K DXR232K DXR240K DXR250K DXR265K DXR280K -
Order-No 1106058 1106108 1106158 1106208 1106258 1106308 1106358 1106408 -









DXS Type DXS110R DXS115R DXS120R DXS125R DXS132R DXS140R DXS150R DXS165R DXS180R
Order-No 1105000 1105075 1105150 1105225 1105300 1105375 1105450 1105525 1105600
Type DXS110L DXS115L DXS120L DXS125L DXS132L DXS140L DXS150L DXS165L DXS180L
Order-No 1105001 1105076 1105151 1105226 1105301 1105376 1105451 1105526 1105601
Type DXS110K DXS115K DXS120K DXS125K DXS132K DXS140K DXS150K DXS165K DXS180K
Order-No 1105002 1105077 1105152 1105227 1105302 1105377 1105452 1105527 1105602
Type DXS210R DXS215R DXS220R DXS225R DXS232R DXS240R DXS250R DXS265R DXS280R
Order-No 1105004 1105079 1105154 1105229 1105304 1105379 1105454 1105529 1105604
Type DXS210L DXS215L DXS220L DXS225L DXS232L DXS240L DXS250L DXS265L DXS280L
Order-No 1105005 1105080 1105155 1105230 1105305 1105380 1105455 1105530 1105605
Type DXS210K DXS215K DXS220K DXS225K DXS232K DXS240K DXS250K DXS265K DXS280K
Order-No 1105006 1105081 1105156 1105231 1105306 1105381 1105456 1105532 1105606
Type DXSR215R DXSR220R DXSR225R DXSR232R DXSR240R DXSR250R DXSR265R DXSR280R -
Order-No 1105083 1105158 1105233 1105308 1105383 1105458 1105533 1105608 -
Type DXSR215L DXSR220L DXSR225L DXSR232L DXSR240L DXSR250L DXSR265L DXSR280L -
Order-No 1105084
