技术参数表
备注：
技术参数数据为最大值,并不能同时使用；
超出技术参数范围的使用工况请咨询德威迩公司技术部：0632-5832779-603
产品特点

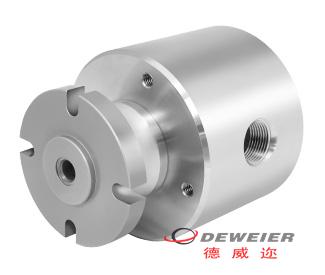

德威迩公司生产的旋转接头替代美国进口的HPS Series Rotary Unions：高压、不锈钢、多通道旋转接头 HPS系列旋转接头特点高压设计，全不锈钢结构适用于海洋和海洋环境。
产品选型表
CatalogModel
|
Max. Pressure¹ |
20,000 PSI (1,375 BAR) |
|
Max. Vacuum¹ |
N/A 鈥? Not for use with vacuum |
|
Max. Rotational Speed¹ |
50 RPMPlease note operational life is dependent upon both rotational speed and duty cycle. Contact DSTI if your application requires operating close to the maximum rotational speed with a continuous duty cycle. |
|
Temperature Range¹ |
0° F to 220° F (-18° C to 105° C)² |
|
Part # |
Thru Bore |
Overall Diameter |
Overall Length |
Min Torque* |
Passage Size |
Connection |
Part Downloads |
Quote |
|
HPS-4310 |
--- |
3.437 |
5.010 |
6 |
0.203 |
3/8" OD, 9/16"-18 UNF M/P |
DWGSTEPPDF |
Get Quote |
|
HPS-4510 |
--- |
4.437 |
5.010 |
6 |
0.438 |
3/4" OD, 3/4"-14 NPS M/P |
DWGSTEPPDF |
Get Quote |
